Product No.:
155019
ca. 3-4 weeks ca. 3-4 weeks (abroad may vary)
1.123,01 EUR

incl. 19% tax excl. Shipping costs

PayPal ECS
Add to wish list
Ask about product
Description

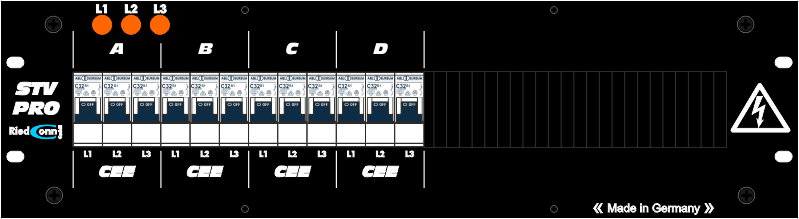

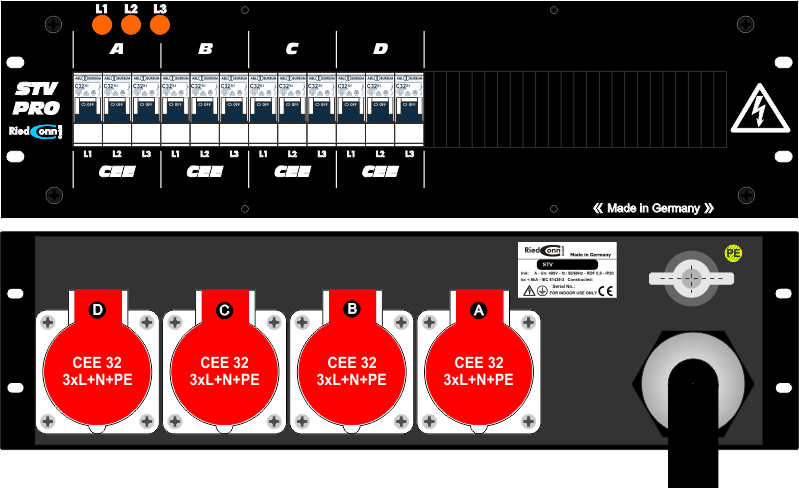

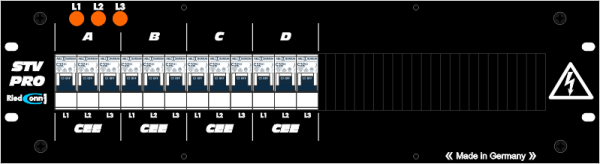

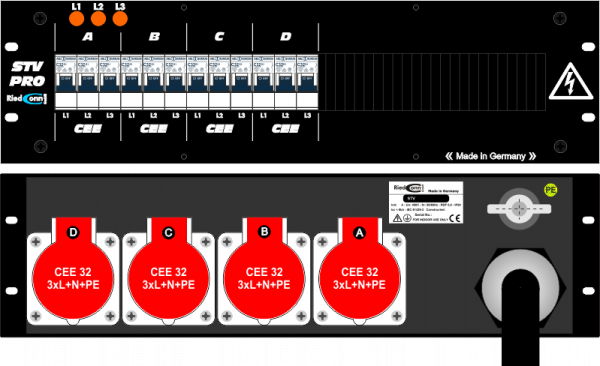

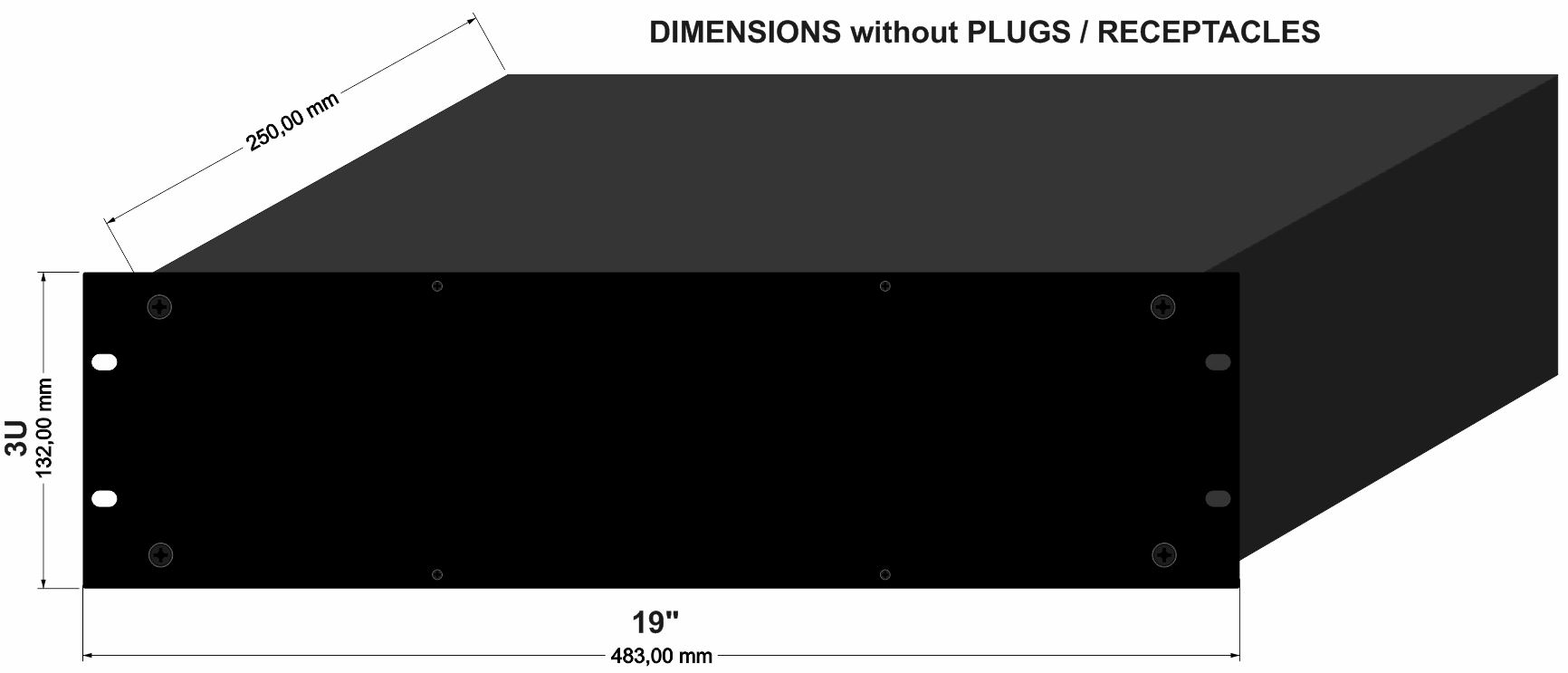

19" Housing 3HE, black
IN: Plug CEE125 400V, 5p. 6h with approx. 1.5m
high-grade rubber cable H07RN-F 5G35

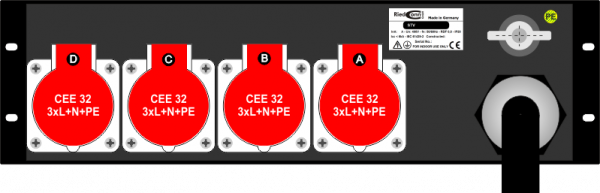

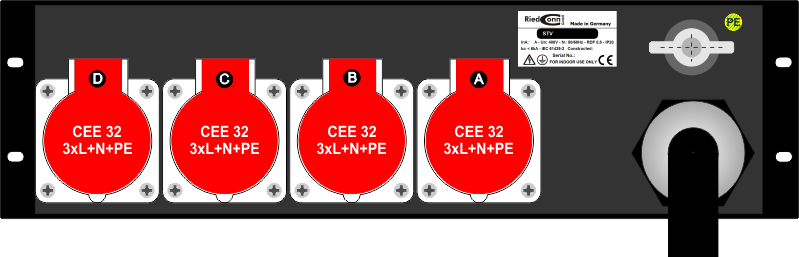

OUT: 4x Panel receptacles CEE32 400V, 5p. 6h
Fuse:
12x Circuit breakers C32A 1p.
CEE32 OUT without RCD Protection !
Other:
3x Phase indicator light
1x PE Screw
high-grade plugs and built in appliances
clear labeling

Data sheets
Data sheets

Wiring plan as PDF File

User manual as PDF File
